Draw-wire encoder SG150
Robust design with 15 m measuring length
Universally usable wire-actuated encoder with measuring lengths of max. 15000 mm, robust design as well as precise and safe wire guidance; prepared for the attachment of various types of rotary encoders with 58 mm standard flange. In combination with a safety encoder from the PURE.MOBILE sensor platform, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level PLd. Furthermore, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level Pld for easy parameterization.
- Very compact design
- Measurement lengths up to max. 15000 mm
- Flexible wire outlet thanks to Wire-Flex technology
- Wire-actuated encoder for rotary encoder with 58 mm servo-flange
- Robust design
- Very robust measuring rope (stainless steel)
- Also available as a safety version in combination with WV58MR rotary encoder
Ben
King
Inside Sales
August
Meyers
Manager Business Unit Mobile Automation
Technical drawing
Technical Specifications
Mechanical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~2.5
kg
without rotary encoder
Housing
aluminum die-cast
Wire design
ø0.87
mm
rustproof stainless steel, plastic-coated
ø0.81
mm
rustproof stainless steel
Extension force
≥15.5
N
Measured distance/ rope drum revolution
500
mm
Feature
Technical Specifications
Enhancement
System accuracy
±0.1
%
relating to measuring length (mm)
Repeat accuracy
±0.2
mm
per direction of approach
Travel speed
≤2.4
m/s
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 … 80 °C
Protection category
see rotary encoder
More information
Rotary encoders that can be combined with this wire-actuated encoder
You can find suitable rotary encoders on our website www.siko-global.com. They are suitable …
The technical specifications for these devices can be found in the respective data sheets. In addition, numerous encoder variants from different manufacturers can be used.

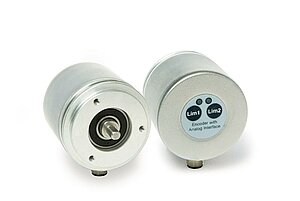

- for analog outputs such as current or voltage: AV3650M, AV58M

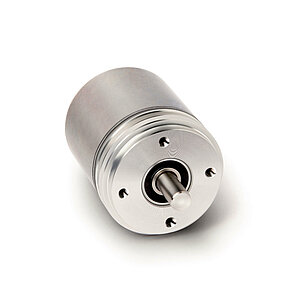

- for incremental outputs: IV5800

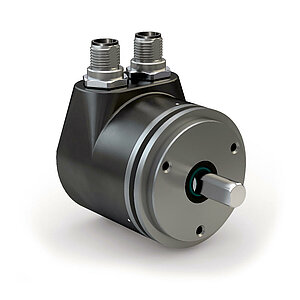

- for absolute outputs: WV58MR, WV5800M, WV5850, WV3650M, WV36M/CAN
The technical specifications for these devices can be found in the respective data sheets. In addition, numerous encoder variants from different manufacturers can be used.
Hint for mounting
When securing the wire it must be ensured that the wire is straight and vertical in relation to the wire outlet. Recommendation: Only select the starting position after an unwound length of approx. 5 mm. This prevents the wire hitting the end stop when it is rewound.
Symbolic representation
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Measuring range
10000
in mm
wire design
S
measuring range ≤10000 mm
encoder type
OG6
position of electrical connection
1
depending on the mounted encoder
Accessories
Comparable products
Scope of delivery
- SG150
- User information
