Absolute encoder WV36M/CAN

Metal housing with solid shaft
SIKO Global, Absolute encoder WV36M/CAN
SIKO Global, Absolute encoder WV36M/CAN
Magnetic, absolute multi-turn rotary encoder WV36M/CAN -batteryless, with CANopen or SAE J1939interface. Owing to its double ball bearing, small design and wear-free magnetic measurement method, the WV36M/CAN is also best suited for positioning jobs in mechanically demanding environments.
  • Compact design (36.5mm diameter)
  • CANopen (DS406) or SAE J1939 interface
  • Multi-turn without battery
  • Double ball bearings
  • 13 bit multi-turn (8192 revolutions)
  • 12 bit single-turn (4096 steps)
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Konner Fierek
Konner Fierek
Key Account Manager Mobile Automation
+1 734 426-3476 konner.fierek(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Absolute encoder WV36M/CAN

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Shaft
rustproof stainless steel
Flange
aluminum
Housing
nickel-plated steel
Speed
≤12000 min-1
Moment of inertia
≤30 gcm²
Starting torque
≤3 Ncm at 20 °C
Shaft load rating
≤40 N axial
≤110 N radial
Weight
~0.15 kg
Feature
Technical Specifications
Enhancement
Operating voltage
9 … 30 V DC
reverse polarity protection
Power input
≤1.2 W
Interface
according to ISO 11898, galvanically isolated
CANopen (DS406), SAE J1939
Address
adjustable
via SDO or Layer Setting Service (LSS)
Baud rate
≤1 Mbit/s
Cycle time
≥1 ms
Feature
Technical Specifications
Enhancement
Resolution
4096
Travel range
4096 rotation(s)
8192 rotation(s)
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 … 85 °C
Storage temperature
-40 … 85 °C
Relative humidity
98 %
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP65
EN 60529
Shock resistance
≤1000 m/s2, 6 ms
EN 60068-2-27
Vibration resistance
≤100 m/s2, 10 Hz … 1 kHz
EN 60068-2-6

More information

pin assignment

Signal
 PIN
CAN_GND
 1
+UB
 2
GND
 3
CAN_H
 4
CAN_L
 5

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Interface

CAN

CAN

CAN

CANopen (DS406)

CAN-J1939

SAE J1939

number of revolutions

4096

4096

4096

12 bit

8192

13 bit

Mounting type

6/S36

6/S36

6/S36

shaft ø6 mm, flange ø36 mm

6/S58

shaft ø6 mm, flange ø58 mm

10/S36

shaft ø10 mm, flange ø36 mm

Your order key

WV36M/CAN - CAN - 4096 - 4096 - 6/S36 - M12
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

User manual

PDF

EN
EN

EU-conformity declarations

PDF

DE | EN | FR

Accessories

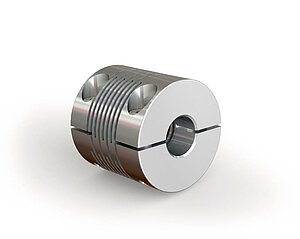

SIKO Global, Flexible coupling AK18
Flexible coupling AK18

  • Backlash-free compensation of mechanical manufacturing tolerances

Go to Product

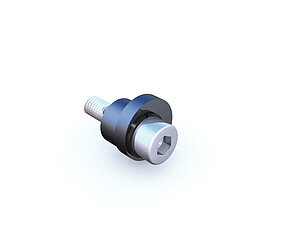

SIKO Global, Servo clamp SK
Servo clamp SK

  • For easy and secure fastening of rotary encoders with servo-flange

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 5-pole, angle socket
83006
Mating connector, 5-pole, socket
84109

Comparable products

SIKO Global, Absolute encoder WV58MR-Testprodukt
Absolute encoder WV58MR-Testprodukt

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product

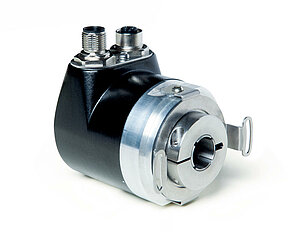

SIKO Global, Absolute encoder WH58MR
Absolute encoder WH58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Absolute encoder WV5800M
Absolute encoder WV5800M

  • CANopen (DS406) or SAE J1939 interface

  • Salt spray tested housing available

  • High EMC compatibility

Go to Product

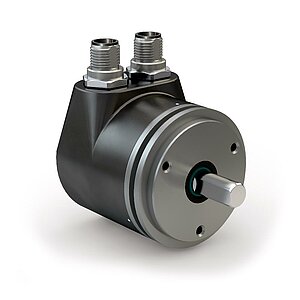

SIKO Global, Absolute encoder WV58MR
Absolute encoder WV58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd
