Absolute encoder AV58M
Metal housing with solid shaft
The AV58M rotary encoder with teach-in function is a magnetic absolute value encoder with analog output. The user himself can set the rotary encoder's desired measurement range via two buttons on the rear as well as two external inputs. The device features a batteryless multi-turn technology.
- Absolute analog encoder
- 13 Bit (8192) resolution over the measuring range
- Operating tmperature until -40 °C
- Voltage (0 … 10 V, 0.5 … 4.5 V), current (0 … 20 mA) outputs
- Programmable measuring range via teach-in function with key funkcion or external inputs
Ben
King
Inside Sales
August
Meyers
Manager Business Unit Mobile Automation
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.15
kg
shaft
rustproof stainless steel
Housing
nickel-plated steel
Speed
≤12000
min-1
Moment of inertia
≤20
gcm²
Starting torque
≤2
Ncm
at 25 °C
Shaft load rating
20
N
axial
80
N
radial
Messwandler, Stromausgang
Feature
Technical Specifications
Enhancement
Operating voltage
8 … 32 V DC
4 … 20 mA
Current consumption
20
mA
@ 24 V (idling)
without load
Linearity
0.15
%
Load
<500
Ω
at ≥ 15 V DC
4 … 20 mA
Accuracy
±0.09
°
Starting time
<500
ms
Settling time
32
ms
Type of connection
1x M12-plug connector (A-coded)
5-pole, 1x pin
Messwandler, Spannungsausgang
Feature
Technical Specifications
Enhancement
Operating voltage
8 … 32 V DC
0 … 10 V
8 … 32 V DC
0.5 … 4.5 V
Current consumption
15
mA
typical
without load
Linearity
0.15
%
Load
>10
kΩ
at ≥ 12 V DC
0 … 10 V, 0.5 … 4.5 V
Accuracy
±0.09
°
Starting time
<500
ms
Settling time
32
ms
Type of connection
1x M12-plug connector (A-coded)
5-pole, 1x pin
Feature
Technical Specifications
Enhancement
Resolution
13
bit
(output)
over the programmed measuring range
Measuring range
≥11.5
°
65536
rotation(s)
16
rotation(s)
factory setting
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 … 85 °C
Storage temperature
-40 … 85 °C
Relative humidity
98
%
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP66, IP67 (housing side)
EN 60529
IP65 (shaft side)
EN 60529
Shock resistance
≤1000 m/s2, 6 ms
EN 60068-2-27
Vibration resistance
≤100 m/s2, 10 … 1 kHz
EN 60068-2-6
More information
pin assignment
|
Signal |
PIN |
|
Iout/Uout |
1 |
|
+UB |
2 |
|
GND |
3 |
|
"Limit 2 " |
4 |
|
Limit 1 |
5 |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Interface
0/10V

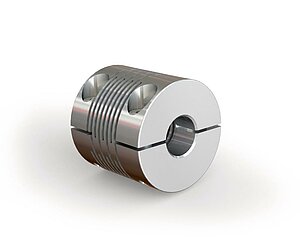

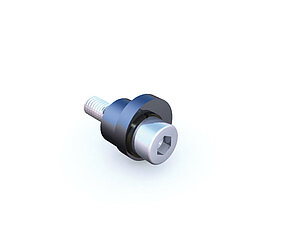

Accessories
Scope of delivery
- AV58M
