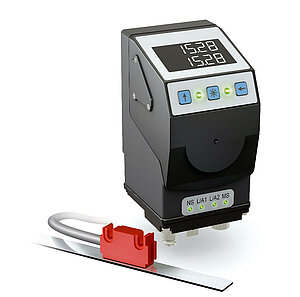

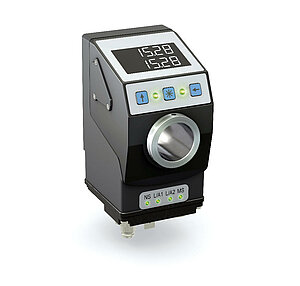

Electronic position indicator AP05
With bus interface
The AP05 position indicator guides the user intuitively to the correct machine setting in the case of product or format change. The optimized backlit display indicates target values and actual values straight to the point. Two LEDs show the machine operator precisely the direction whereto the adjustment is to be performed.The AP05 helps avoid wrong machine settings and enhances process safety of flexible production machines.
- Electronic position indicator with bus/data interface
- Backlit two-row LCD
- Display of target and actual value displays with integrated alignment
- User guidance through status LEDs
- Hollow shaft with Ø 20 mm and clamping ring made of stainless steel
- Enhanced shock resistance owing to protective display glass
- Integrated RS485 interface, CAN bus or IO-Link as an option
- Robust sensor technology unit thanks to magnetic scanning

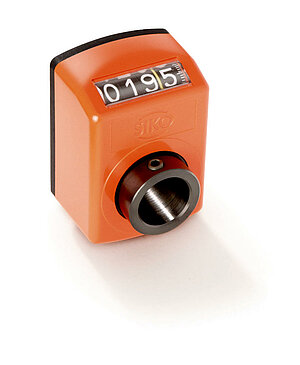

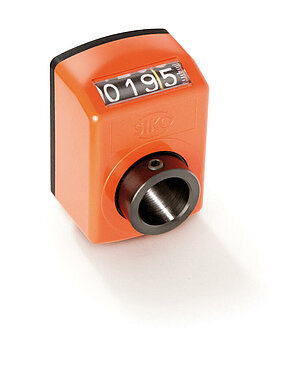

- Mechanically compatible with the AP04 and DA04 position indicators
- IP53 protection class, IP65 as an option
- Industry 4.0 ready
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.07
kg
shaft
plastic
Housing
reinforced plastic
plug thread, nickel-plated brass/cover, metal ground connection
Color
black, RAL 9005
clamping ring
rustproof stainless steel
Speed
≤500
min-1
Cable sheath
PUR
E15X, E12X connection type
Cable bending radius
≥30
mm
permanently laid
Schnittstelle CANopen
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
reverse polarity protection
Current consumption
~30
mA
Battery service life
~8
Year(s)
Parameter storage
105 cycles
also applies to calibration operations
Display/display range
5-digit LCD 7-segment, ~6 mm height
decimal points, 2 rows, special characters (backlit LED red/white)
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
chain dimension function, parameterization, calibration
Interface
CANopen
no galvanic isolation
Type of connection
2x M8 plug connectors (A-coded)
4-pole, 1x socket, 1x pin
grounding via flat connector 6.3 mm
Schnittstelle RS485
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
reverse polarity protection
Current consumption
~30
mA
Battery service life
~8
Year(s)
Parameter storage
105 cycles
also applies to calibration operations
Display/display range
5-digit LCD 7-segment, ~6 mm height
decimal points, 2 rows, special characters (backlit LED red/white)
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
chain dimension function, parameterization, calibration
Interface
RS485
no galvanic isolation
Type of connection
2x M8 plug connectors (A-coded)
4-pole, 1x socket, 1x pin
grounding via flat connector 6.3 mm
Schnittstelle IO-Link
Feature
Technical Specifications
Enhancement
Operating voltage
18 … 30 V DC
reverse polarity protection
Current consumption
~30
mA
Battery service life
~8
Year(s)
Parameter storage
105 cycles
also applies to calibration operations
Display/display range
5-digit LCD 7-segment, ~6 mm height
decimal points, 2 rows, special characters (backlit LED red/white)
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
chain dimension function, parameterization, calibration
Interface
IO-Link version 1.1
according to IEC 61131-9 V1.1.2, incl. Package 2015 & Corrigendum
Type of connection
1x M8-plug connector (A-coded)
4-pole, 1x pin (EX connection type)
1x M12-plug connector (A-coded)
4-pole, 1x pin (E12X connection type)
grounding via flat connector 6.3 mm
Feature
Technical Specifications
Enhancement
Scanning
magnetic
Resolution
720
Increments/revolution
displayed value/rotation freely configurable
Measuring range
≤932067
rotation(s)
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 60 °C
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61326-1
immunity requirement of industrial applications, emission limit class B
Safety regulations
DIN EN 61010-1 (VDE 0411-1), UL 61010-1
Limited power supply according to DIN EN 61010-1 Section 9.4.
Protection category
IP53
EN 60529, in the fitted condition, with mating connector mounted
IP65
EN 60529, in the fitted condition, with mating connector mounted
Shock resistance
≤500 m/s2, 11 ms
EN 60068-2-27, half-sine, 3 axes (+/-), each 3 shocks
Vibration resistance
≤100 m/s2, 10 … 2000 Hz
EN 60068-2-6, 3 axes, each 10 cycles
More information
pin assignment
Interfaces
|
IO-Link |
RS485 |
CAN |
PIN |
|
L+ (+UB) |
TxRx-/DÜB |
CANL |
1 |
|
nc |
TxRx+/DÜA |
CANH |
2 |
|
L- (GND) |
+24 V DC |
+24 V DC |
3 |
|
C/Q |
GND |
GND |
4 |
Industry 4.0
In most cases, data exchange with the position indicators is limited to the exchange of process data. In addition to the process data, intelligent displays provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
|
Process data |
Smart Value |
Smart Function |
|
Actual position |
Battery voltage |
Battery change planning |
|
"Target position " |
Speed |
Overload |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
interface/
protocol
IOL
hollow shaft/
diameter
20
reducing bushes

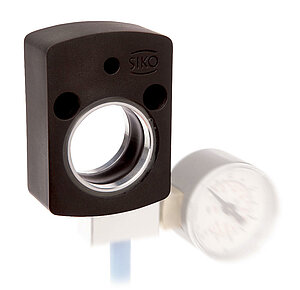

Intermediate plate
OZP
Protection category
IP53
Type of connection
EX
without cable
only with IO-link
only with S3/09, CAN
Software
S
Accessories

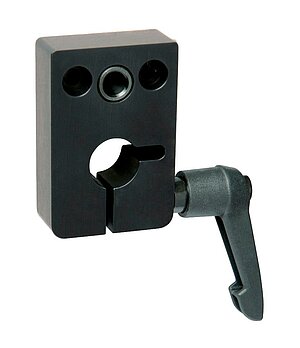

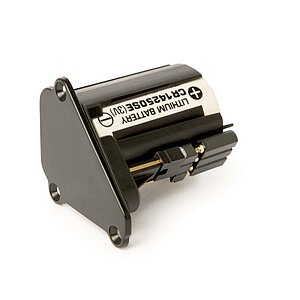

Additional Accessories
Order key
Mating connector, 4-pole, socket
84209
Mating connector, 4-pole, pin
84210
Bus terminating connector, 4-pole, pin
BAS-0005
Comparable products
Scope of delivery
- AP05
- Installation Instructions
