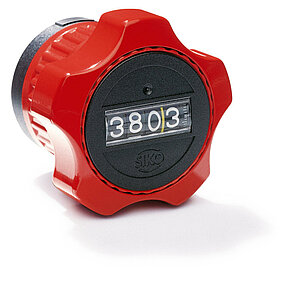

Digital position indicator DA04
Basic device with 4 decades
- Hollow shaft, max. Ø 14 mm
- Counter with 4 decades and fine reading
- Detent as an option
- Magnifying function for good readability
- Stainless-steel driving shaft as an option
- Axial seal, dustproof and splash-proof

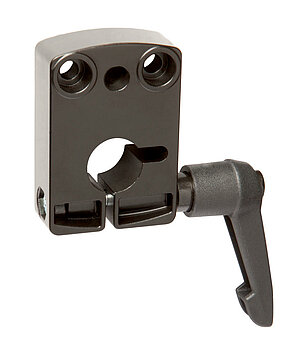

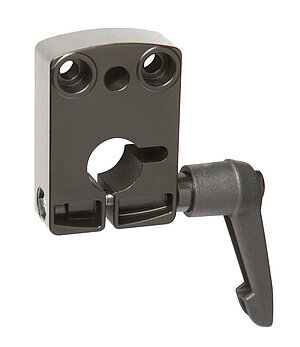

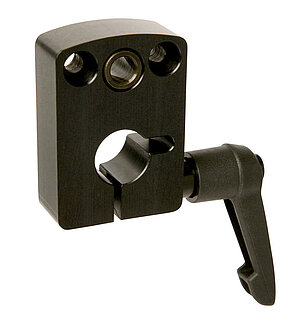

- Clamping plate (see accessories)
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.05
kg
Housing
reinforced plastic
Sight window
plastic
mineral glass as an option
Counter
4
Decades with fine reading
Digit height
~6
mm
max. speed
|
Display (after 1st revolution) |
max. speed [rpm] |
|
0010 |
500 (1500) |
|
0015 |
500 (1000) |
|
0020 |
500 (750) |
|
0025 |
500 (600) |
|
0030 |
500 |
|
0040 |
375 |
|
0050 |
300 |
|
0060 |
275 |
|
0080 |
180 |
|
0100 |
150 |
Note
Speeds >500 rpm must only be run for short periods.
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position
02
see the icons illustrating the mounting positions
indication after 1st revolution
10
/5 = arithmetical value not displayed
decimal place
0
Counting direction
i
hollow shaft/
diameter
12.7
in mm
stainless steel

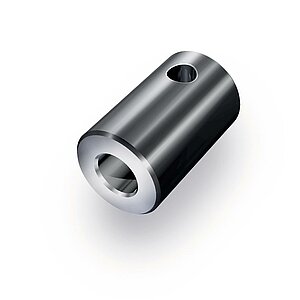

reducing bushes
Color
O
seal
OAD
sealing plate not applicable
detent/
hollow shaft
OAR
vibration protection M ~20 Ncm, only for housing color O or S and hollow shaft 14, 15, VA14 or RH…r
Intermediate plate
OZP
"not with seal ""GD"""
Accessories
Scope of delivery
- DA04
