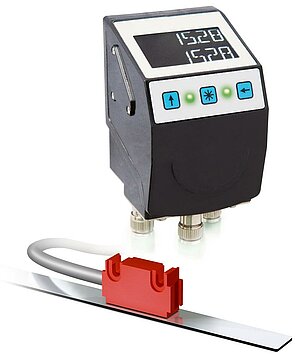

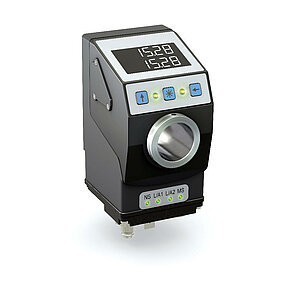

Electronic position indicator AP20S
Absolute linear adjustments, integrated Industrial Ethernet interface
Absolute position display with communication interface for linear or slide adjustment intuitively guides the operator to the correct machine setting when changing products or changing formats. Readability is optimized for intuitive user prompting: The backlit display clearly shows the setpoint and actual value, and the two LEDs clearly indicate the direction in which the adjustment must be mad.
- Electronic position indicator with plug connection for magnetic sensor
- Integrated Industrial-Ethernet-Fieldbus
- Backlit two-row LCD
- Display of target and actual value displays with integrated alignment
- Display accuracy up to 0.01 mm
- Absolute function via internal backup
- Robust sensor technology unit thanks to magnetic scanning
- User guidance through status LEDs
- IP53 protection class, IP65 as an option
- Industry 4.0 ready
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.2
kg
Housing
reinforced plastic
plug thread, nickel-plated brass/cover, metal ground connection
Color
black
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Current consumption
~100
mA

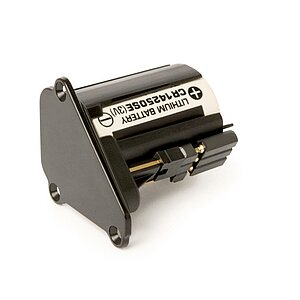

Battery service life
~8
Year(s)
Parameter storage
106 cycles
also applies to calibration operations
Display/display range
6-digit LCD 14-segment, ~8 mm high
decimal points, 2 rows, special characters (backlit LED red/white)
-199999 … 999999
expanded display area to -999999
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
incremental measurement function, parameterizing, resetting
Interface
EtherNet/IP
PROFINET
EtherCAT
POWERLINK
Type of connection
1x M8-plug connector (A-coded)
4-pole, 1x pin
1x M8-plug connector (A-coded)
6-pole, 1x socket (sensor)
2x M12 plug connectors (D-coded)
4-pole, 2x socket
grounding via flat connector 6.3 mm
Feature
Technical Specifications
Enhancement
Scanning
external sensor
Resolution
0.01
mm
use with MS500H
720
Increments/revolution
displayed value/rotation freely configurable (use with GS04)
System accuracy
±35
µm
use with MS500H
Measuring range
±10485
m
use with MS500H
≤233016
rotation(s)
use with GS04
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 60 °C
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61326-1
immunity requirement of industrial applications, emission limit class B
Protection category
IP53
EN 60529, only with mating connector
IP65
EN 60529, only with mating connector
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6
More information
pin assignment
Ethernet
|
Signal |
PIN |
|
Tx+ |
1 |
|
Rx+ |
2 |
|
Tx- |
3 |
|
Rx- |
4 |
Operating voltage
|
Signal |
PIN |
|
reserved |
1 |
|
reserved |
2 |
|
+UB |
3 |
|
GND |
4 |
Industry 4.0
In most cases, data exchange with the position indicators is limited to the exchange of process data. In addition to the process data, intelligent displays provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
|
Process data |
Smart Value |
Smart Function |
|
Actual position |
Battery voltage |
Battery change planning |
|
"Target position " |
Presence, distance, alignment sensor |
Counting error |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
interface/
protocol
ECT
Protection category
IP53
Sight window
SF
impact protection
Accessories
Comparable products
Scope of delivery
- AP20S
- Installation Instructions
