Electronic position indicator AP20
Absolute spindle adjustments, integrated Industrial Ethernet interface

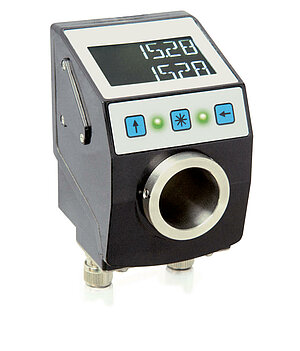

The AAP20 position indicator with Industrial Ethernet interface intuitively guides the operator to the correct machine setting when changing products or changing formats. The backlit display shows setpoint and actual values precisely. Two LEDs clearly show the machine operator the direction in which the adjustment must be made. With the AP20 position display, faulty machine settings can thus be avoided in the future, making flexible production machines completely process-reliable.
- Integrated Industrial-Ethernet-Fieldbus
- Backlit two-row LCD
- Display of target and actual value displays with integrated alignment
- Stainless-steel hollow shaft ø20 mm, up to ø25.4 mm as an option
- Robust sensor technology unit thanks to magnetic scanning
- User guidance through status LEDs
- Mechanically compatible with the DA09S and AP10 position indicators
- IP53 protection class, IP65 as an option
- Industry 4.0 ready
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.3
kg
shaft
rustproof stainless steel
Housing
reinforced plastic
plug thread, nickel-plated brass/cover, metal ground connection
Color
black
Speed
≤500
min-1
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Current consumption
~100
mA
Battery service life
~8
Year(s)
Parameter storage
106 cycles
also applies to calibration operations
Display/display range
6-digit LCD 14-segment, ~8 mm high
decimal points, 2 rows, special characters (backlit LED red/white)
-199999 … 999999
expanded display area to -999999
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
incremental measurement function, parameterizing, resetting
Interface
EtherNet/IP
PROFINET
EtherCAT
POWERLINK
Type of connection
1x M8-plug connector (A-coded)
4-pole, 1x pin
2x M12 plug connectors (D-coded)
4-pole, 2x socket
grounding via flat connector 6.3 mm
Feature
Technical Specifications
Enhancement
Scanning
magnetic
Resolution
880
Increments/revolution
displayed value/rotation freely configurable
Measuring range
≤190650
rotation(s)
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 60 °C
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61326-1
immunity requirement of industrial applications, emission limit class B
Protection category
IP53
EN 60529, only with mating connector
IP65
EN 60529, only with mating connector
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6
More information
pin assignment
Ethernet
|
Signal |
PIN |
|
Tx+ |
1 |
|
Rx+ |
2 |
|
Tx- |
3 |
|
Rx- |
4 |
Operating voltage
|
Signal |
PIN |
|
reserved |
1 |
|
reserved |
2 |
|
+UB |
3 |
|
GND |
4 |
Industry 4.0
In most cases, data exchange with the position indicators is limited to the exchange of process data. In addition to the process data, intelligent displays provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
|
Process data |
Smart Value |
Smart Function |
|
Actual position |
Battery voltage |
Battery change planning |
|
"Target position " |
Presence, distance, alignment sensor |
Counting error |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
interface/
protocol
ECT
hollow shaft/
diameter
20
Adapter sleeve
torque pin/
position
II
Protection category
IP53
Sight window
SF

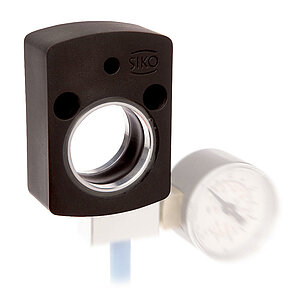

impact protection
Accessories

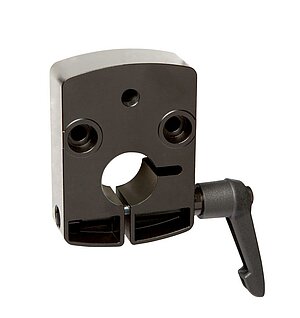

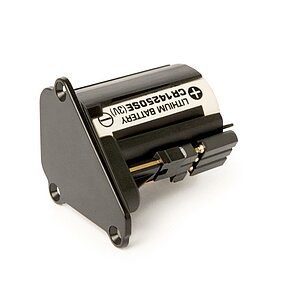

Additional Accessories
Order key
Mating connector, 4-pole, socket
84209
Mating connector, 4-pole, angular pin
87600
Mating connector, 4-pole, pin
87601
Scope of delivery
- AP20
- Installation Instructions
