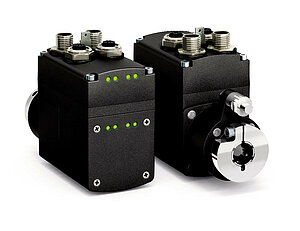

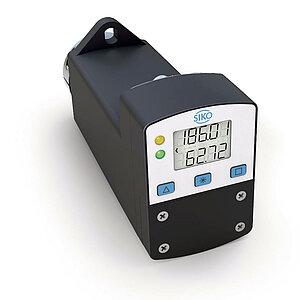

Positioning drive AG03/1

Integrated field bus or IO-Link interface

SIKO Global, Positioning drive AG03/1
SIKO Global, Positioning drive AG03/1
SIKO Global, Positioning drive AG03/1
SIKO Global, Positioning drive AG03/1
SIKO Global, Positioning drive AG03/1
SIKO Global, Positioning drive AG03/1
High-performance compact actuator for complex positioning jobs
  • Space-saving, easy mounting
  • Through hollow shafts up to max. ø14 mm
  • Brushless 50 W, 24 V EC motor with long service life
  • Integrated power and control electronics with inverse polarity and overload protection
  • Integrated absolute position encoder on the output shaft
  • interfaces CANopen, Profibus-DP, RS485/SIKONETZ5 or IO-Link
  • IO-Link optionally with 1 cable or 2 cable interface
  • Industry 4.0 ready
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Positioning drive AG03/1

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Shaft
black-finished steel
Housing
aluminum/zinc die cast
electrostatic discharge (ESD)
Nominal torque/rated speed
3.2 Nm at 100 min-1
i = 48
1.6 Nm at 200 min-1
i = 24
Operating mode
S3 intermittent operation: 25 % DC, 10 min.
EN 60034-1
Weight
~1.2 kg
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±10 %
reverse polarity protected, output stage
24 V DC ±10 %
reverse polarity protected, control (only CAN, PB, S3/09, IOL, IOL2)
Power input
58 W
output stage
Battery
CR2477N, 3 V lithium, 950 mAh
Battery service life
~5 Year(s)
depending on ambient conditions
Parameter storage
105 cycles
also applies to calibration operations
Rated current
2.4 A ±10 %
at max. adm. torque (output stage)
<100 mA at 24 V DC (control)
only CAN, PB, S3/09, IOL, IOL2
Status display
2 LEDs
Keys
touch keys
for setting-up mode
Bus connection
CANopen
galvanic isolation of interface
Profibus-DP
galvanic isolation of interface
SIKONETZ5
galvanic isolation of interface
IO-Link, IOL
galvanic isolation between operating voltage, output stage and control
IO-Link, IOL2
galvanic isolation between operating voltage, output stage and control
Type of connection
2x M12 plug connectors (A-coded)
5-pole, 1x socket, 1x pin (CAN)
2x M12 plug connectors (B-coded)
5-pole, 1x socket, 1x pin (PB)
2x M8-plug connectors
4-pole, 1 x socket, 1 x pin (S3/09)
1x M12-plug connector (A-coded)
4-pole, 1x pin (CAN + PB + S3/09 + IOL2)
1x M12-plug connector (A-coded)
5-pole, 1x pin (IOL + IOL2)
grounding via flat connector 6.3 mm
Feature
Technical Specifications
Enhancement
Resolution
1600 Increments/revolution
System accuracy
±0.8 °
unidirectional
Repeat accuracy
±1 Increment(s)
unidirectional / bidirectional
Travel range
±8182 rotation(s)
Failure rate
21.4 Year(s)
CAN, at 60° C (MTBF) according to SN 29500
21.2 Year(s)
PB, at 60° C (MTBF) according to SN 29500
21.9 Year(s)
S3/09, at 60° C (MTBF) according to SN 29500
26.8 Year(s)
IOL, at 60° C (MTBF) according to SN 29500
26.9 Year(s)
IOL2, at 60° C (MTBF) according to SN 29500
Feature
Technical Specifications
Enhancement
Ambient temperature
… 45 °C
Storage temperature
-20 … 60 °C
Relative humidity
condensation inadmissible
EMC
EN 61800-3, second environment
interference resistance / immission, shielded line required
EN 61800-3, C3
emitted interference / emission
Protection category
IP50 / IP54 / IP65
EN 60529, with mating connector fitted
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
≤100 m/s2, 5 … 150 Hz
EN 60068-2-6
Height above NHN (standard elevation zero)
2000 m

More information

pin assignment

Operating voltage

Assignment
PIN
+UB
1
GND
2
PE
3

PB, CAN

PB
CAN
PIN
nc
nc
1
BUS A
nc
2
nc
CAN_GND
3
BUS B
CAN_H
4
nc
CAN_L
5

S3/09

Signal
PIN
DÜB/TxRx-
1
DÜB/TxRx+
2
nc
3
SGND
4

IOL, IOL2

IOL
IOL 2
L+ (+UB control)
L+ (+UB control)
1
P24 (+UB output stage)
nc
2
L- (GND control)
L- (GND control)
3
C/Q
C/Q
4
N24 (GND output stage)
nc
5

Performance curve

Industry 4.0

In most cases, data exchange with the actuators is limited to the exchange of process data. In addition to the process data, intelligent drives provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
Process data
Smart Value
Smart Function
Actual position
Temperature
Overlaod, ambient temperature
"Target position "
current
Torque, overload
Speed
Volatage load Voltage control
Voltage drop, line break
On/Off time
Operating time
Battery voltage
Battery change planning

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

48

48

48

i = 48

24

i = 24

Protection category

IP50

IP50

IP50

IP50

IP54

IP54

IP65

IP65

shaft design/
diameter

KR/14

KR/14

KR/14

clamping ring ø14 mm

KR/12

clamping ring, ø12 mm

N/10

keyway JS9 DIN 6885/1 ø10 mm

Torque pin

A

A

A

bolt, ø6 mm

B

lug

incl. elastomer bushing

fieldbus

CAN

CAN

CAN

CANopen

PB

Profibus-DP

Profidrive
S3/09

RS485/SIKONETZ5

IOL

IO-Link, 1 plug version

IOL2

IO-Link, 2 plug version

Your order key

AG03/1 - 48 - IP50 - KR/14 - A - ABM - CAN - SW
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Data sheet

PDF

DE

Quick Start Guide

PDF

DE | EN

User manual

IO-Link

PDF

DE
EN

SIKONETZ5

PDF

DE
EN
IT

Profibus

PDF

DE
EN
IT

CANopen

PDF

DE
EN
IT

3D-CAD model

Link/URL

CAD-Modell

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Accessories

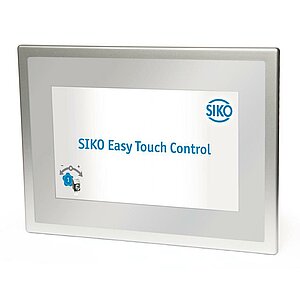

SIKO Global, Easy touch control ETC5000

Easy touch control ETC5000
  • Control system for position indicators and actuators

  • Intuitive touchscreen control concept for format adjustment

  • up to 31 devices can be actuated

Go to Product

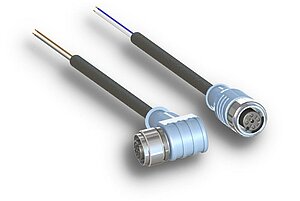

SIKO Global, Cable extension KV04S1

Cable extension KV04S1
  • Ready-to-use cable connection

  • Cable lengths up to 10 m

  • Connection technology M8, 4-pole

Go to Product
SIKO Global, Cable extension KV04S2

Cable extension KV04S2
  • Ready-to-use cable connection

  • Cable lengths up to 10 m

  • Connection technology M12 (A-coded), 4-pole

Go to Product
SIKO Global, Programming software ProTool DL

Programming software ProTool DL
  • Software can be run on systems with WinXP or newer without installation

  • intuitive and neat operation

  • graphical user interface

Go to Product
SIKO Global, Overview Mating connector

Overview Mating connector
  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 5-pole, angle socket
82804
Mating connector, 5-pole, angular pin
82805
Mating connector, 5-pole, angle socket
83006
Mating connector, 5-pole, angular pin
83007
Mating connector, 4-pole, angle socket
83091
Mating connector, 4-pole, socket
83526
Mating connector, 5-pole, socket
83991
Mating connector, 5-pole, pin
83992
Mating connector, 5-pole, socket
84109
Mating connector, 4-pole, socket
84209
Mating connector, 4-pole, pin
84210
Mating connector, 5-pole, pin
84732

Comparable products

SIKO Global, Positioning drive AG06

Positioning drive AG06
  • easy mounting, no additional coupling needed

  • stainless steel hollow shaft, glass fibre reinforced casing

  • brushless 24 VDC motor with long service life

Go to Product

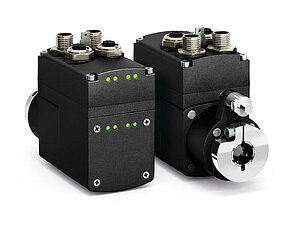

SIKO Global, Positioning drive AG25

Positioning drive AG25
  • Small dimensions| high power density

  • easy mounting and commissioning

  • High flexibility, high protection class

Go to Product

Scope of delivery

  • AG03/1
  • Quick Start Guide

SIKO Application Reports

Labeling machine with SIKO position indicators and positioning drives

Pharma 4.0 with intelligent size changeover

“Size changeover" is not necessarily a term that immediately makes people stop and pay attention in the pharmaceutical industry. However, considering the challenges in pharmaceutical manufacturing, which are characterized by cost and competitive pressure as well as strict regulations, intelligent…

Learn more

Industries relevant to the product

Wooden boards at a woodworking company
Woodworking
SIKO positioning systems for packaging technology
Packaging Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Instagram

Linkedin

Insta Trainee

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Downloads for Discontinued Products
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2025 SIKO GmbH
