Positioning drive AG02 analog

analog
SIKO Global, Positioning drive AG02 analog
SIKO Global, Positioning drive AG02 analog
Robust and powerful actuator for absolute positioning jobs.
  • Easy mounting
  • Optional through hollow shafts up to max. Ø 14 mm
  • Integrated analog absolute position encoder
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Positioning drive AG02 analog

Technical Specifications

Mechanical data
Electrical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Shaft
black-finished steel
Housing
aluminum
Nominal torque/rated speed
8 Nm at 120 min-1
i = 55.3 (150 W motor)
9 Nm at 110 min-1
i = 62.2 (150 W motor)
Operating mode
S3 intermittent operation: 25 % DC, 10 min.
EN 60034-1
Weight
~1.8 kg
(analog)

Motor

Feature
Technical Specifications
Enhancement
Operating voltage
… 24 V DC
without motor control PWM
Power input
150 W
Rated current
5.8 A ±4 % (150 W motor)
max. load current i = 55.3 / i = 62.2
Type of connection
2x M16 plug connectors
3-pole, 1x pin| 7-pole, 1x pin

Geber Potentiometer

Feature
Technical Specifications
Enhancement
Power rating
2 W at 70 °C
P10 position encoder
Resistance tolerance
±5 %
P10 position encoder
Standard terminal resistance
0.2 % or 1 Ω
P10 position encoder (always the higher value)
Linearity tolerance
±0.25 %
P10 position encoder

Messwandler, Stromausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 % at load 500 Ω
reverse polarity protection

Messwandler, Spannungsausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
ILoad ≤10 mA reverse-polarity protected
Feature
Technical Specifications
Enhancement
Ambient temperature
… 70 °C
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61800-3, second environment
interference resistance / immission
EN 61800-3, C3
emitted interference / emission
Protection category
IP50 (IP65 optional) with mounted mating connectors
EN 60529
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
≤100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

Motor

Signal
 PIN
"Motor + "
 1
nc
 2
Motor -
 3

potentiometer

P01/P10
 MWI
 MWU
 PIN
Pe
 I-
 GND
 1
Po
 I+
 +24 V DC
 2
S
 nc
 Uout
 3
nc
 nc
 nc
 4-7

Performance curve

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

55,3

55.3

55,3

i = 55.3

62,2

i = 62.2

shaft design/
diameter

KR/14

KR/14

KR/14

clamping ring ø14 mm

N/10

keyway, ø10 mm

with i=55.3, other transmissions on request

hollow shaft type

S

S

S

blind hole

for the max. length of the stub shaft refer to the table of dimensions
D

full-length

Torque pin

B

B

B

lug

incl. elastomer bushing
OD

without

position encoder

MWI

MWI

MWI

transducer 4 … 20 mA

10 helipot potentiometer
MWU

transducer 0 … 10 V

10 helipot potentiometer
P01

potentiometer 1 kΩ

10 helipot potentiometer
P10

potentiometer 10 kΩ

10 helipot potentiometer
0

others on request

potentiometer transmission *

1

1

1 max.
1 128 max.

Sense of rotation

i

i

i

clockwise ascending values

nur bei Geber MWI und MWU
e

counter-clockwise ascending values

nur bei Geber MWI und MWU
* Calculation of potentiometer gear ratio: For example, if 120 revolutions are required for one adjustment, then a gear ratio of 12 should be indicated for the 10-turn potentiometer. To be precise: number of revolutions required/10 (10-turn potentiometer) = potentiometer gear ratio

Your order key

AG02 analog - 55.3 - 150W - KR/14 - S - B - LR - MWI - 1 - i - OMS - XX/CC - OFB
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

3D-CAD model

ZIP

CAD-Modell

Accessories

SIKO Global, Cable extension KV02S0
Cable extension KV02S0

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M16, 3-pole

Go to Product
SIKO Global, Cable extension KV07S0
Cable extension KV07S0

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M16, 7-pole

Go to Product

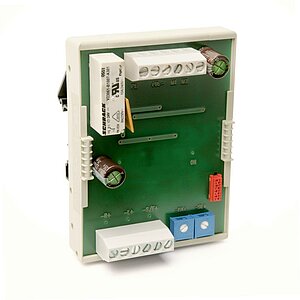

SIKO Global, Motor control module MS02
Motor control module MS02

  • Easy mounting (top-hat rail)

  • Variable control variants

  • Use with different positioning controls

Go to Product

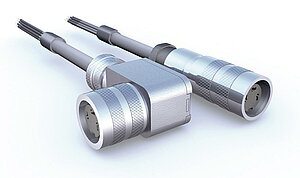

SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 7-pole, socket
76141
Mating connector, 7-pole, angle socket
78088
Mating connector, 3-pole, angle socket
81363
Mating connector, 3-pole, socket
82182

Comparable products

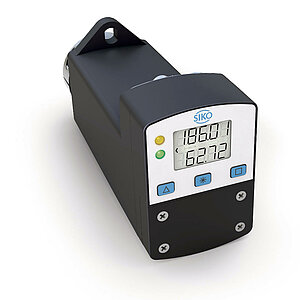

SIKO Global, Positioning drive AG04B
Positioning drive AG04B

  • Easy mounting

  • Stainless steel hollow shaft up to max. ø20 mm

  • """manual"" traveling without control unit by means of operator keys"

Go to Product

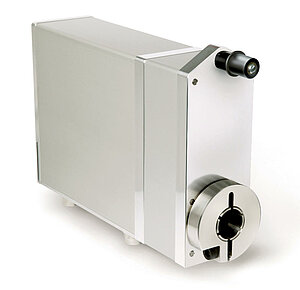

SIKO Global, Positioning drive AG06
Positioning drive AG06

  • easy mounting, no additional coupling needed

  • stainless steel hollow shaft, glass fibre reinforced casing

  • brushless 24 VDC motor with long service life

Go to Product

Scope of delivery

  • AG02 analog
  • Quick Start Guide
