Digital position indicator DA10R/1
With 2 counting mechanisms
- Version with two counters (4 or 5 decades) and fine reading
- Predestined for use with wood milling machines
- Hollow shaft, max. Ø 30 mm
- Display can be designed for “mm” or “inch”
Note
Speeds >500 rpm must only be run for short periods.
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.1
 kg
Housing
 reinforced plastic
Counter
4
 Decades with fine reading
,
5
 Decades with fine reading
Digit height
~7
 mm
max. speed
Display (after 1st revolution) |
max. speed [rpm] |
00010 |
500 (1500) |
00015 |
500 (1000) |
00020 |
500 (750) |
00025 |
500 (600) |
00030 |
500 |
00040 |
375 |
00050 |
300 |
00060 |
250 |
00080 |
180 |
00100 |
150 |
Note
Speeds >500 rpm must only be run for short periods.
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
indication after 1st revolution
7/874
/874 = computational value not displayed
decimal place
0
Counting direction
i
hollow shaft/
diameter
25

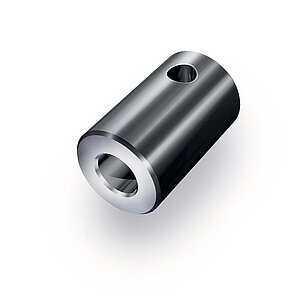

reducing bushes
hollow shaft/
design
WK
torque pin/
position
I
axial seal
OAD
Accessories
Scope of delivery
- DA10R/1
