Digital position indicator DA08
In the metal housing
- Extremely sturdy design in a metal housing
- Hollow shaft, max. Ø 35 mm
- Counter with 4 or 5 decades
- with zeroing function
- Clamp lever integrated in the design
- Stainless-steel driving shaft as an option
- Reversible counting direction
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.7
kg
Housing
zinc die-cast
Counter
4
Decades with fine reading
Digit height
~4.5
mm
max. speed
|
Display (after 1st revolution) |
max. speed [rpm] with zero position |
max. speed [min-1] without zero setting |
|
(0)0010 |
500 |
500 (1200) |
|
(0)0020 |
250 |
500 (600) |
|
(0)0025 |
200 |
480 |
|
(0)0030 |
165 |
400 |
|
(0)0040 |
125 |
300 |
|
(0)0050 |
100 |
240 |
|
(0)0060 |
85 |
200 |
|
(0)0080 |
60 |
150 |
|
(0)0100 |
50 |
120 |
Note
Speeds >500 rpm must only be run for short periods.
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position
01
see the icons illustrating the mounting positions
see the icons illustrating the mounting positions
see the icons illustrating the mounting positions
see the icons illustrating the mounting positions
Counter/
digits
4
indication after 1st revolution
10
decimal place
0
only with 5 decades
only with 5 decades
only with 5 decades
only with 5 decades
Counting direction
i
by opening the housing
hollow shaft/
diameter
20
only with display after 1st rotation "50"
stainless steel

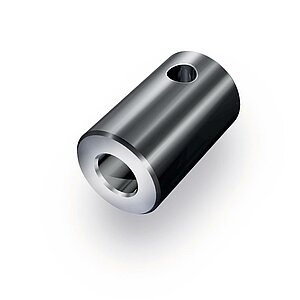

reducing bushes
Color
O
clamp lever/
position
OKL
Scope of delivery
- DA08
