Geared potentiometer GP03/1
Compact design with solid shaft
- Solid shaft Ø 4 mm or Ø 6 mm
- Adaptation to various measurement distances owing to a wide range of gear ratios
- Integrated slip clutch to protect the potentiometer
- Compact design
- Potentiometer, power or voltage output
- IP65 protection class
Ben
King
Inside Sales
August
Meyers
Manager Business Unit Mobile Automation
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
shaft
rustproof stainless steel
Housing
reinforced plastic / aluminum
Gear ratio
0.2 … 256
Speed
≤500
min-1
depending on transmission
Shaft load rating
≤400
N
radial
≤150
N
axial
Potentiometer service life
1 x 106 rotation(s)
Geber Potentiometer Typ 01, 1 Wendel
Feature
Technical Specifications
Enhancement
Power rating
1
W
at 70 °C
≤30 V
resistance
5
kΩ
,
10
kΩ
Resistance tolerance
±10
%
Standard terminal resistance
0.5
%
Linearity tolerance
±1
%
Design
hybride
Geber Potentiometer Typ 02, 10 Wendel
Feature
Technical Specifications
Enhancement
Power rating
2
W
at 70 °C
≤30 V
resistance
1
kΩ
,
5
,
10
kΩ
Resistance tolerance
±5
%
Standard terminal resistance
0.5
%
Linearity tolerance
±0.25
%
Design
wire
Geber Potentiometer Typ 03, 10 Wendel
Feature
Technical Specifications
Enhancement
Power rating
2
W
at 70 °C
≤30 V
resistance
1
kΩ
,
5
,
10
kΩ
Resistance tolerance
±5
%
Standard terminal resistance
0.5
%
Linearity tolerance
±0.25
%
Design
hybride
Messwandler, Stromausgang
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output current
4 … 20 mA
at load 500 Ω
Messwandler, Spannungsausgang
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output voltage
0 … 10 V
Feature
Technical Specifications
Enhancement
Measuring range
340° ±5°
(mechanical full-length)
potentiometer type 01
3600° +10°
potentiometer types 02, 03
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP65
EN 60529
More information
pin assignment
without transducer
|
Signal |
Terminal E1 |
PIN EX |
|
Pe |
1 |
1 |
|
Po |
2 |
2 |
|
S |
3 |
3 |
|
nc |
- |
4 |
MWI transducer
|
Signal |
Terminal E1 |
PIN EX |
|
I+ |
1 |
1 |
|
I- |
2 |
2 |
|
nc |
3 |
3 |
|
nc |
- |
4 |
MWU transducer
|
Signal |
Terminal E1 |
PIN EX |
|
+24 V DC |
1 |
1 |
|
GND |
2 |
2 |
|
Uout |
3 |
3 |
|
nc |
- |
4 |
Purchase order
Gear ratio calculation
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Gear ratio
0.1
Type of connection
E1/7
potentiometer type
01
only for P05 or P10 analog output
analog output
MWI
Sense of rotation
<leer>
only for P01, P05, or P10 analog output
only for MWI or MWU analog output
only for MWI or MWU analog output

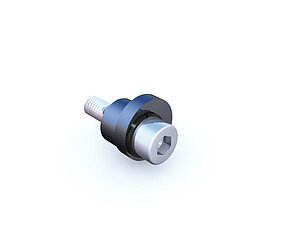

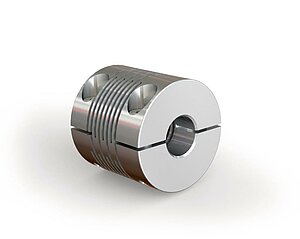

Accessories
Scope of delivery
- GP03/1
- Installation Instructions
