Geared potentiometer GP02

Compact design with through hollow shaft
SIKO Global, Geared potentiometer GP02
SIKO Global, Geared potentiometer GP02
  • Through hollow shaft Ø 14 mm
  • Adaptation to various measurement distances owing to a wide range of gear ratios
  • Compact, low-cost design
  • Potentiometer or power output
  • Easy mounting
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Konner Fierek
Konner Fierek
Key Account Manager Mobile Automation
+1 734 426-3476 konner.fierek(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Comparable products

Technical drawing

SIKO Global, Geared potentiometer GP02

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Shaft
black-finished steel
Housing
plastic
Gear ratio
0.2 … 128
Speed
≤500 min-1
depending on transmission
Potentiometer service life
1 x 106 rotation(s)

Geber Potentiometer Typ 01, 1 Wendel

Feature
Technical Specifications
Enhancement
Power rating
1 W at 70 °C
≤30 V
resistance
1, 5, 10 kΩ
Resistance tolerance
±10 %
Standard terminal resistance
0.5 %
Linearity tolerance
±1 %
Design
hybride

Geber Potentiometer Typ 02, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
2 W at 70 °C
≤30 V
resistance
1, 5, 10 kΩ
Resistance tolerance
±5 %
Standard terminal resistance
0.2 %
Linearity tolerance
±0.25 %
Design
wire

Geber Potentiometer Typ 03, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
2 W at 70 °C
≤30 V
resistance
1, 5, 10 kΩ
Resistance tolerance
±5 %
Standard terminal resistance
0.2 %
Linearity tolerance
±0.25 %
Design
hybride

Geber Potentiometer Typ 03/0.1, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
2 W at 70 °C
≤30 V
resistance
5 kΩ
Resistance tolerance
±5 %
Standard terminal resistance
0.2 %
Linearity tolerance
±0.1 %
Design
hybride

Messwandler, Stromausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output current
4 … 20 mA at load 500 Ω
Feature
Technical Specifications
Enhancement
Measuring range
340° ±5° (mechanical full-length)
potentiometer type 01
3600° +10°
potentiometer types 02, 03, 03/0.1
Feature
Technical Specifications
Enhancement
Ambient temperature
… 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP52
EN 60529

More information

pin assignment

Potentiometric outputs P01, P05, P10

Signal
Po
 brown
Pe
 white
S
 green

MMW transducer

Signal
 Cable color
I+
 brown
I-
 white

Purchase order

Gear ratio calculation

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

0,2

0.2

0.2
0.25
0.333
0.5
1
2
3
4
6
7
9
10
12
16
20
20.3636
24
28
30
36
48
68
112
128
0

others on request

torque pin/
form

A

A

A

form A, cylindrical pin

B

form B, for tolerance compensation

potentiometer type

01

01

01

1 helix, hybrid

02

10 helices, wire

03

10 helices, hybrid

03/0,1

10 helices, hybrid, linear tolerance ±0.1 %

only at resistance 5

resistance

1

1

1

potentiometer 1 kΩ

5

Potentiometer 5 kΩ

10

potentiometer 10 kΩ

transducer

mit

mit

mit

with

only only for resistance 10 and potentiometer type 02 or 03
<leer>

no information required

Sense of rotation

<leer>

<leer>

<leer>

no information required

only for resistance 1, 5, 10
e

counter-clockwise ascending values

only for MWI analog output
i

clockwise ascending values

only for MWI analog output

Cable length

00,2

00.2

00.2
in m
00.5
00.6
01.0 in m
01.0 15.0 m, in intervals of 1 m

Your order key

GP02 - 0.2 - H/14 - A - 01 - 1 - mit - <leer> - 00.2
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

CKCA conformity declarations

PDF

EN

EU-conformity declarations

PDF

DE | EN

Comparable products

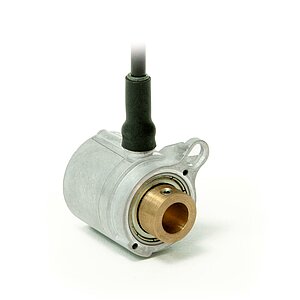

SIKO Global, Absolute encoder AH25S
Absolute encoder AH25S

  • Miniature absolute analog encoder

  • 12 bit (4096) resolution over 360°

  • IP65 protection class

Go to Product

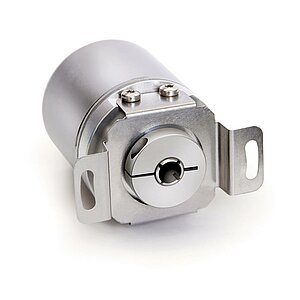

SIKO Global, Absolute encoder AH36M
Absolute encoder AH36M

  • Absolute analog encoder

  • 13 Bit (8192) resolution over the measuring range

  • 13 Bit (8192) resolution over the measuring range

Go to Product

Scope of delivery

  • GP02
  • Installation Instructions
