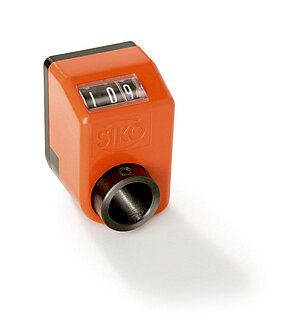

Control knob DK05
Miniaturized design with digital display
- Miniature control knob
- Shaft support: max. Ø 10 mm
- front display
- Counter with 3 decades
- Display can be designed for “mm” or “inch”
- Housing color: orange or black
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.02
kg
shaft
anodized aluminum (supported in friction bearings)
Housing
reinforced plastic
Counter
3
Decades
Digit height
~4
mm
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position
02
see the icons illustrating the mounting positions
indication after 1st revolution
7/5
/5 = arithmetical value not displayed
decimal place
0
Counting direction
i
hollow shaft/
diameter
10

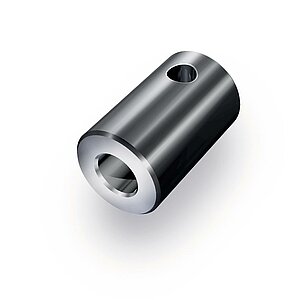

reducing bushes
Color
O
Scope of delivery
- DK05
