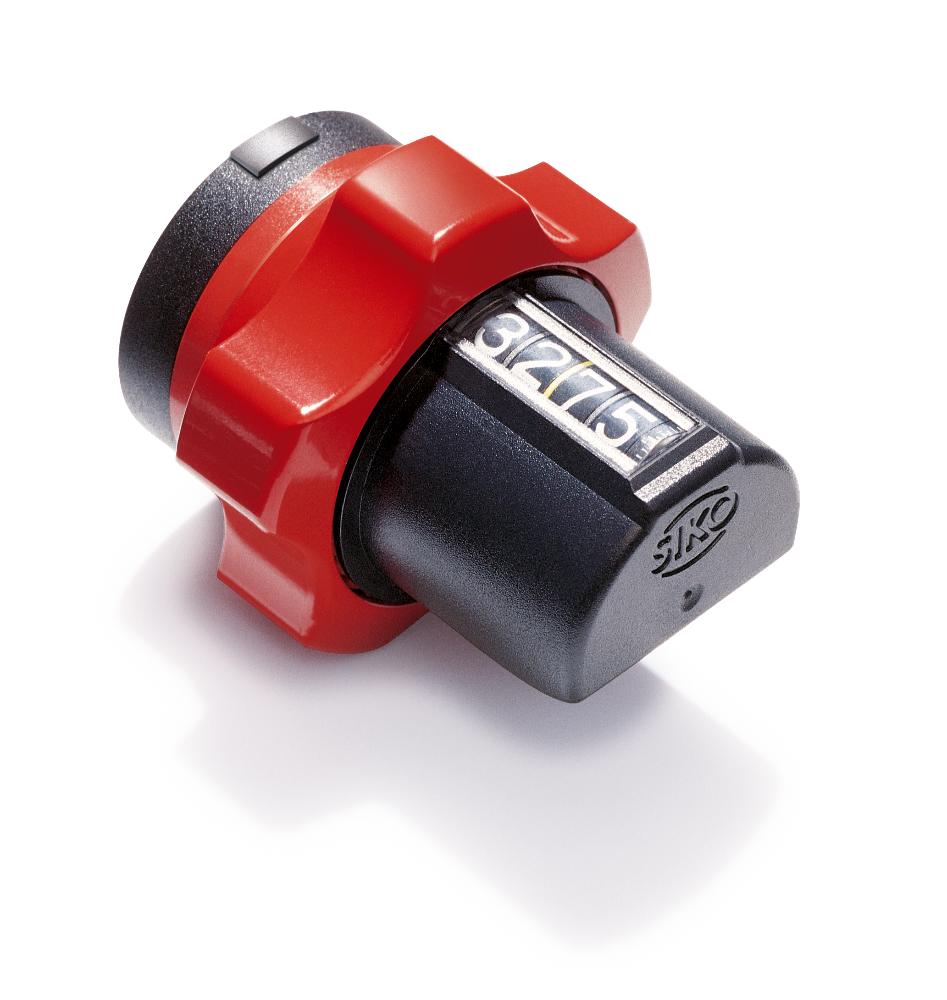

Control knob DK02
Side display
- Control knob with integrated position indicator
- Shaft support: max. Ø 14 mm
- Counter with 4 decades and fine reading
- Various display values
- Star wheel as an option
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.06
kg
Housing
plastic
Sight window
plastic
mineral glass as an option
Counter
4
Decades with fine reading
Digit height
~6
mm
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position
08
indication after 1st revolution
12/5
/5 = arithmetical value not displayed
decimal place
0
Counting direction
i
hollow shaft/
diameter
14

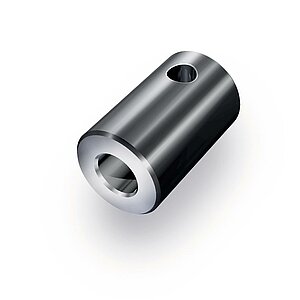

reducing bushes
torque pin/
position
270
handwheel form
RA
cover ring
O
Scope of delivery
- DK02
