Digital position indicator DA05/1
with fine adjustment
- Robust design in a metal housing
- Hollow shaft, max. Ø 20 mm
- Counter with 5 decades and fine reading
- Display can be designed for “mm” or “inch”
- Attenuated counter system
- Fine setting for correction of dimensions
- Reversible counting direction
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.5
kg
Housing
zinc die-cast
Counter
5
Decades with fine reading
Digit height
~7
mm
max. speed
|
Display (after 1st revolution) |
max. speed [rpm] |
|
00010 |
500 (1500) |
|
00015 |
500 (1000) |
|
00020 |
500 (750) |
|
00025 |
500 (600) |
|
00030 |
500 |
|
00040 |
375 |
|
00050 |
300 |
|
00060 |
250 |
|
00080 |
180 |
|
00100 |
150 |
Note
Speeds >500 rpm must only be run for short periods.
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 80 °C
Purchase order
Ordering information
Note: Highlights in orange are order features.
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Mounting position
02
indication after 1st revolution
10
decimal place
0
Counting direction
i
by opening the housing, see mounting instructions
hollow shaft/
diameter
20
in mm

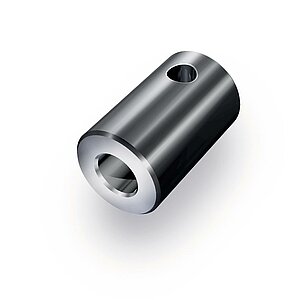

reducing bushes
Color
O
fine adjustment
FE
slipping clutch
RK
"only with fine adjustment ""FE"""
"only with fine adjustment ""OFE"""
labyrinth seal
OLD
Scope of delivery
- DA05/1
- Installation Instructions
