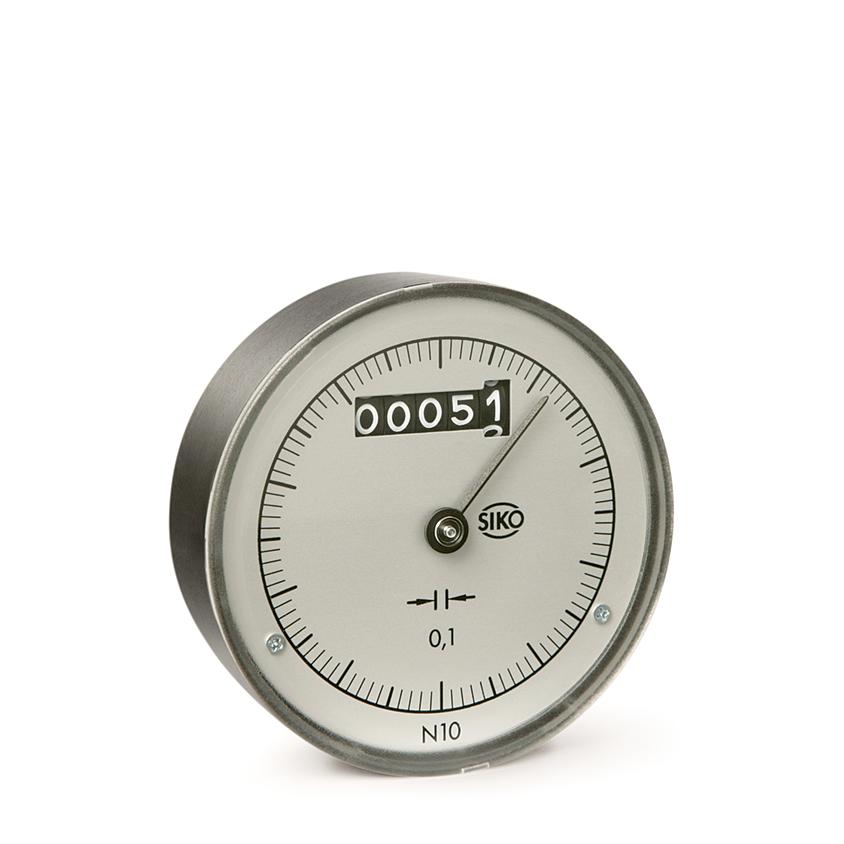

Analog position indicator SZ80/1
With additional digital counter
- Combined analog-digital position indicator
- Measured value acquisition based on the gravity principle
- High stability thanks to doubly supported pointer shaft
- Very robust, glass-fiber reinforced plastic housing
- Counter with 5 decades
- Special scales, also for small numbers of pieces
- Dustproof or oil-filled versions
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Feature
Technical Specifications
Enhancement
Weight
0.2
kg
N, W design
0.3
kg
P design
Housing
reinforced plastic
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
version
N
indication after 1st revolution
2
decimal place
0
Sense of rotation
i
Pointer
1
covering glass
S
scale
N…
with respect to display after 1st rotation
customer-specific, no VK for first production
multi-color scale
C1
Scope of delivery
- SZ80/1
