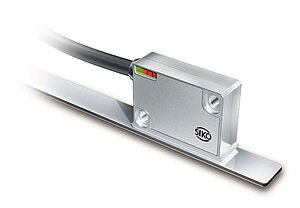

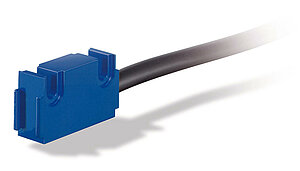

Magnetic sensor LE200
Compact sensor, incremental and analog interfaces
- Robust metal housing
- LED status display
- sin/cos output 1 VSS
- Signal period 2000 μm
- Scale MB200/1
- Insensitive to dust, shavings, humidity, etc.
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
0.03
kg
(without cable)
Housing
zinc/aluminum die-cast, nickel-plated
M design
green plastic
A design
zinc die-cast
ZM design
Sensor/band reading distance
0.1 … 0.8 mm
O, IA, ID reference signal
0.1 … 0.5 mm
reference signal RB, RD
Cable sheath
PUR, suitable for drag-chain use
6, 8-core ø5-0.4 mm
Cable bending radius
5x cable diameter
static
7.5x cable diameter
dynamic
Service life of cable
>5
Million cycles
Under the following test conditions:
Feature
Technical Specifications
Enhancement
Operating voltage
10.5 … 30 V DC
5 V DC ±5 %
Current consumption
<25
mA
at 24 V DC
<50
mA
at 5 V DC
Output signals
sin, /sin, cos, /cos, index, /index
Output voltage
1 VPP ±10 %
at 0 … 70 °C
Output current
≤60
mA
peak, 5 s
per wire
Output impedance
0
Ω
(Rload >100 Ω)
short-circuit proof
Signal period
2000
µm
Offset voltage
2.5 V, ±100 mV
sine/cosine mean to GND (10.5 … 30 V DC)
UB/2 ±100 mV
sine/cosine mean to GND (5 V DC)
Phasing
90°±1°, ±3° (20 m/s)
sin/cos
45
°
sin (reference signal)
135
°
cos (reference signal)
Type of connection
open cable end
plug connector
7/8-pole
Signal image
E: Reference voltage 2.5 V
F: 1 VSS ±10 %
J: ≥0.2 V
K: ≥0.3 V
L: 100° ±20 %
M: 90° ±1.0° / ±3° (20 m/s)
X: 1 VSS
F: 1 VSS ±10 %
J: ≥0.2 V
K: ≥0.3 V
L: 100° ±20 %
M: 90° ±1.0° / ±3° (20 m/s)
X: 1 VSS
Feature
Technical Specifications
Enhancement
Linearity deviation
±5
µm
at TU = 20° C
Repeat accuracy
4
µm
unidirectional
Travel speed
≤25
m/s
≤5
m/s
reference signal RB, RD
Feature
Technical Specifications
Enhancement
Ambient temperature
-10 … 70 °C
Storage temperature
-30 … 80 °C
Relative humidity
100
%
condensation admissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP67
EN 60529
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
200 m/s2, 50 Hz … 2 kHz
EN 60068-2-6
More information
pin assignment
without reference signal
|
Signal |
E1 |
E6X |
|
GND |
black |
1 |
|
sin |
red |
2 |
|
/sin |
orange |
3 |
|
cos |
yellow |
4 |
|
/cos |
green |
5 |
|
+UB |
brown |
6 |
|
nc |
7 |
with reference signal
|
Signal |
E1 |
E6X |
|
sin |
red |
1 |
|
cos |
yellow |
2 |
|
index |
blue |
3 |
|
+UB |
brown |
4 |
|
GND |
black |
5 |
|
/sin |
orange |
6 |
|
/cos |
green |
7 |
|
/index |
violet |
8 |

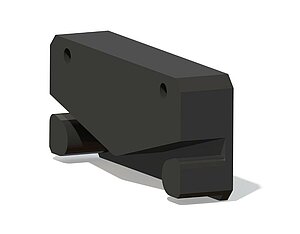

System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
Operating voltage
10
design
M
Type of connection
E1
cable length l
01.0
01.0
20.0 m, in intervals of 1 m
reference signal
O
index signal every 2 mm
index signal every 2 mm
Scope of delivery
- LE200
- Fastening set
- User information
