Inclinometer IK360
Absolute inclination sensor based on MEMS technology, accuracy ±0.1°
The IK360 inclination sensor is an absolute inclination sensor for accurate angle or inclination measurement based on MEMS technology. Thanks to the robust design up to IP6K9K and the integrated temperature compensation, the inclination sensor can also be used in applications with substantial external influences. In addition, the free programming of system parameters as well as the teach-in function for measuring range, zero point setting and direction change provides a high degree of flexibility and easy integration into the overall system. The IK360 is available in a single- and two-axis version and with a variety of interfacess.
- Single-axis or dual-axis variant
- 0 … 10 V or 4 … 20 mA interfaces
- CANopen interface
- IP66 and IP67 protection classes
- Easy three-point mounting
Ben
King
Inside Sales
August
Meyers
Manager Business Unit Mobile Automation
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.1
kg
Housing
PBT fiber-reinforced
Mounting type
3-point mounting
Feature
Technical Specifications
Enhancement
Operating voltage
10 … 30 V DC
reverse polarity protection
Power input
≤0.7
W
Temperature drift
-0.004
°/K
Interface
0 … 10 V
load ≥5 kΩ
4 … 20 mA
load ≤270 Ω at 10 V DC
Type of connection
1x M12-plug connector (A-coded)
8-pole, 1x pin, E12E connection type
Schnittstelle CANopen
Feature
Technical Specifications
Enhancement
Operating voltage
-10 … -30 V DC
Power input
≤0.7
W
Temperature drift
0.004
°/K
Interface
according to ISO 11898-1, not electrically isolated
CANopen
Address
1 … 127
Baud rate
20
kbit/s
50
kbit/s
100
kbit/s
40
kbit/s
50
kbit/s
500
kbit/s
800
kbit/s
1000
kbit/s
Parameter
according to CiA 410
CANopen
Type of connection
1x M12-plug connector (A-coded)
5-pole, 1x pin, E12E connection type
Feature
Technical Specifications
Enhancement
Scanning
MEMS
Resolution
0.01
°
System accuracy
±0.1
°
for 2-axis versions in working range ±60°
Measuring range
0 … 360 °
1 axis
±80
°
2 axes, current and voltage output
±90
°
2 axes, CANopen
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 … 85 °C
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP66
EN 60529, fitted with suitable mating connector
IP67
EN 60529, fitted with suitable mating connector
Shock resistance
≤100g, 6 ms
EN 60068-2-27, half sine
Vibration resistance
1.5 mm, 10 Hz … 58 Hz
EN 60068-2-6
≤20g, 58 … 2000 Hz
EN 60068-2-6
More information
pin assignment
Analog interface
|
Signal 1-axis |
Signal 2-axis |
Pin |
|
+UB |
+UB |
1 |
|
nc |
nc |
2 |
|
nc |
nc |
3 |
|
GND |
GND |
4 |
|
Z-axis output U/I |
X-axis output U/I |
5 |
|
SET1 |
SET1 |
6 |
|
nc |
Y-axis output U/I |
7 |
|
nc |
nc |
8 |
CANopen
|
Signal |
PIN |
|
CAN_GND |
1 |
|
+UB |
2 |
|
GND |
3 |
|
CAN_H |
4 |
|
CAN_L |
5 |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
number of axes
1
Interface
0/10V
Accessories
Additional Accessories
Order key

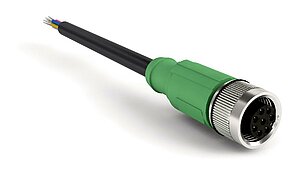

Mating connector, 5-pole, angle socket
83006
Mating connector, 8-pole, socket
83525
Mating connector, 5-pole, socket
84109
Scope of delivery
- IK360
- Fastening set
