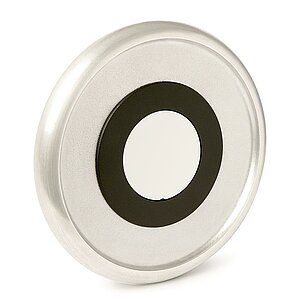

Handwheel HR6
Premium knurled aluminum handwheel
- Premium knurled aluminum handwheel
- Compact design
- Surface plastic-coated, anodized or bright-finished
- Various hub versions
Ben
King
Inside Sales
Cary
Mulvany
Manager Business Unit Changeover Solutions
Technical drawing
Technical Specifications
Mechanical data
Feature
Technical Specifications
Enhancement
Weight
0.3
kg
HR6
Material
aluminum
Dimensions
|
øD |
ødv |
ødx |
ød1 |
a |
b |
c |
e |
Suitable for |
|
65 |
5.8 |
20 |
30 |
50 |
35 |
15 |
20 |
S50/1 |
|
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
ødv = d pre-drilled; ødx = d max.
special processing
|
Handwheel type |
HR6 |
||||
|
Bore dH7 |
6 … 8 |
9, 10 |
11, 12 |
13 … 16 |
17 … 20 |
|
Groove width with keyway JS9 |
3 |
4 |
5 |
||
|
Pin hole |
3.8/10 |
3.8/10 |
3.8/10 |
4.8/10 |
|
|
Hub thread without keyway JS9 |
M4/10 |
M4/10 |
M4/10 |
M6/10 |
|
|
Hub thread with keyway JS9 |
M3/10 |
M3/10 |
M4/10 |
||
|
3 |
1 |
1 |
1 |
1 |
1 |
Highlights in orange are order features.
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Select your specifications:
surface
B
Bore diameter
5.8
06
20 mm, in steps of 1 mm
see Table of dimensions, maximum value ødx
feather key groove
OP
according to DIN 6885/1 T1
according to DIN 6885/1 T1
Pinhole
OS
see Table of dimensions; value GfG
hub thread
ONG
tapered hub
OAN
"see table Special processing, depending on the handwheel type, only if pin hole is ""OS"""
position indicator
PM
separate ordering of a position indicator required!
separate ordering of a position indicator required!
Scope of delivery
- HR6
