Incremental encoder IH5828

Optical rotary encoder, large hollow shaft, small overall size
SIKO Global, Incremental encoder IH5828
SIKO Global, Incremental encoder IH5828
When large hollow shafts require high capacities, the IH5828 is the optimum rotary encoder. The optical incremental rotary encoder IH5828 has optimised dimensions for hollow shafts of up to 28 mm. An optimum, low-cost design makes the rotary encoder the standard encoder for large hollow shafts.
  • Resolution max. 5000 pulses/revolution
  • Through hollow shaft up to max. ø28 mm
  • M12 or cable connection
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
August Meyers
August Meyers
Manager Business Unit Mobile Automation
+1 734 426-3476 august.meyers(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Incremental encoder IH5828

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.4 kg
Shaft
steel
Housing
aluminum
Speed
≤2500 min-1
Moment of inertia
~3.5 x 10-6 kgm2
Starting torque
<0.1 Nm at 20 °C
Cable sheath
PVC
ø4.5 mm
Cable bending radius
27 mm
static
68 mm
dynamic

Ausgangsschaltung OP

Feature
Technical Specifications
Enhancement
Operating voltage
8 … 30 V DC
reverse polarity protected, the power-supply unit corresponds to Class 2 (UL 1310)
Current consumption
40 mA typical
≤100 mA (no load)
Output signal level high
≥UB - 3.0 V
short-circuit proof
Output signal level low
≤2.5 V
short-circuit proof
Pulse frequency
≤200 kHz
Load
±40 mA
max. adm.
Type of connection
open cable end
1x M12-plug connector
8-pole, 1x pin

Ausgangsschaltung LD5

Feature
Technical Specifications
Enhancement
Operating voltage
5 V DC
reverse polarity protected, the power-supply unit corresponds to Class 2 (UL 1310)
Current consumption
40 mA typical
≤90 mA (no load)
Output signal level high
≥2.5 V
short-circuit proof
Output signal level low
≤0.5 V
short-circuit proof
Pulse frequency
≤300 kHz
Load
±20 mA
max. adm.
Type of connection
open cable end
1x M12-plug connector
8-pole, 1x pin

Signal image

Feature
Technical Specifications
Enhancement
Approval
UL
UL 61010-1, File No. E503367

Kenndaten funktionale Sicherheit

Feature
Technical Specifications
Enhancement
MTTFd
63.4 Year(s)
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 … 70 °C at rotational speed ≤2000 min -1
-20 … 60 °C at rotational speed ≤2500 min -1
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-3
emitted interference / emission
Safety regulations
UL 61010-1
indoor use, outdoor use possible, not intended for use involving direct exposure to UV light.
Protection category
IP64
EN 60529 (protection type not yet reviewed by UL)
Shock resistance
1000 m/s2, 6 ms
EN 60068-2-27
Vibration resistance
100 m/s2, 10 … 2000 Hz
EN 60068-2-6

More information

pin assignment

Signal
 E1
 E12
GND
 white
 1
+UB
 brown
 2
A
 green
 3
/A
 yellow
 4
B
 gray
 5
/B
 Pink
 6
0
 blue
 7
/0
 red
 8

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

pulses/
revolution

50

50

50
100
125
250
400
500
512
1000
1024
2000
2048
5000

Type of connection

E1

E1

E1

open cable ends

E12

connector

Cable length

01,0

01.0

01.0
in m
03.0
only at E1
OK

without

only with E12

Output circuit

OP

OP

OP

push-pull with inversion

LD5

LineDriver, 5 V

LD24

LineDriver, 8 … 30 V

hollow shaft/
diameter

16

16

16
in mm
20
24
28

Your order key

IH5828 - AB0 - 50 - E1 - 01.0 - OP - 16
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

Certificate

UL

PDF

EN

CKCA conformity declarations

PDF

EN

Installation Instructions

PDF

DE | EN

EU-conformity declarations

PDF

DE | EN

Accessories

SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product

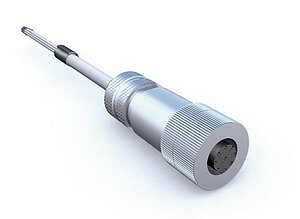

SIKO Global, Cable extension KV08S2
Cable extension KV08S2

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M12 (A-coded), 8-pole

Go to Product
Additional Accessories
Order key
Mating connector, 8-pole, socket
83525

Comparable products

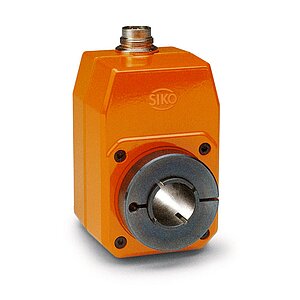

SIKO Global, Incremental encoder IG07
Incremental encoder IG07

  • Resolutions of max. 1024 pulses/revolution

  • Through hollow shafts up to ø20 mm

  • Housing made of zinc die-cast

Go to Product

Scope of delivery

  • IH5828
  • Quick Start Guide
